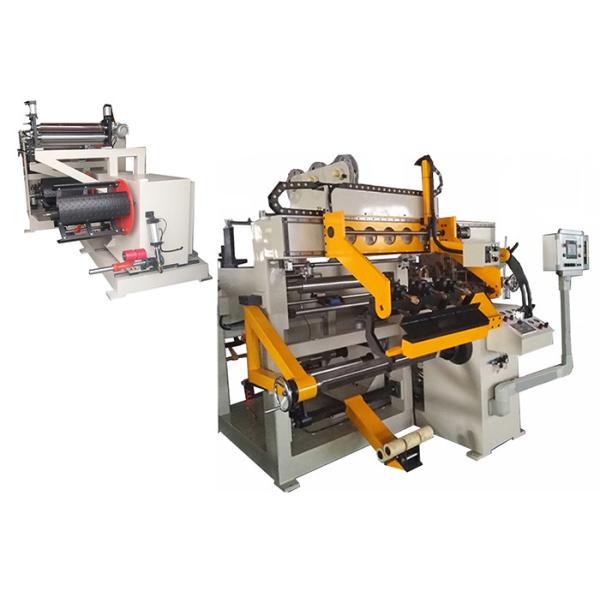

11kw Motor Transformer Foil Winding Machine Double Layers 600mm Width

Name: 11kw Motor Transformer Foil Winding Machine Double Layers 600mm Width
Brand: Zhutang
Price: 1 USD

Brand Name : Zhutang

Model Number : BRJ600-2

Certification : Main parts with CE

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 100 sets per year

Delivery Time : 40-45 days

Packaging Details : Seaworthy packing

Max. foil width : 600mm

Foil Material OD : 1000mm

Cu foil thickness : 0.2-2.0mm

Al foil thickness : 0.3-3.0mm

Welding : TIG

Welding Speed : 0.8m/min

Winding motor : 11kw

Insulation : Pneumatic control

Contact Now

11kw Motor Transformer Foil Winding Machine , Double Layers Of 600mm Width Foil

1) Description

11kw Motor Transformer Foil Winding Machine , Double Layers Of 600mm Width Foil BRJ600-2 can

Handle one or two layers of copper or aluminium foil with max width 600mm
Handle one or two layers of insulation paper with max width 650mm
Provide tension with pneumatic brake in foil decoiler
Rectify automatically
Make sure the foil edge neat
Start slowly
Run smoothly

2) Main components

This foil winding machine is provided with main frame, adopting iron structure, it is very strong, winding unit, adopting big power motor with big pulling force, foil decoiler, with big tension to make sure the wound foil tightly, insulation decoiler, with big tension, based on PLC control system, based on PLC, and coloured touch screen, to make operating this machine very easy.

3) Main parameter

Wounded coil Shape:	oval, circle and rectangular
Foil Material OD.:	1,000mm
Foil Material ID.:	500mm
Foil Decoiler Number	2 pcs
Foil Decoiler Length:	650mm
Foil Decoiler Diameter Range:	400-520mm
Winding Power:	11KW
Winding Shaft Size:	80×80×950 mm
Max. Winding Speed:	26 Rpm
Insulation Decoiler Number:	2 pcs
Insulation Material OD.:	≤400mm
Insulation Material ID.:	76mm
Width of insulation material:	650mm
End-fill Strip Feeder:	8 pcs
Edge Alignment System:	Photoelectric sensing
Rectification Precision:	±0.5mm
User Interface:	10inch (254mm) touch screen industrial PC / access controller
Counting Turns Range:	0 - 9999.9

4) Delivering

It can be transported with one 20 feet container by ship.
